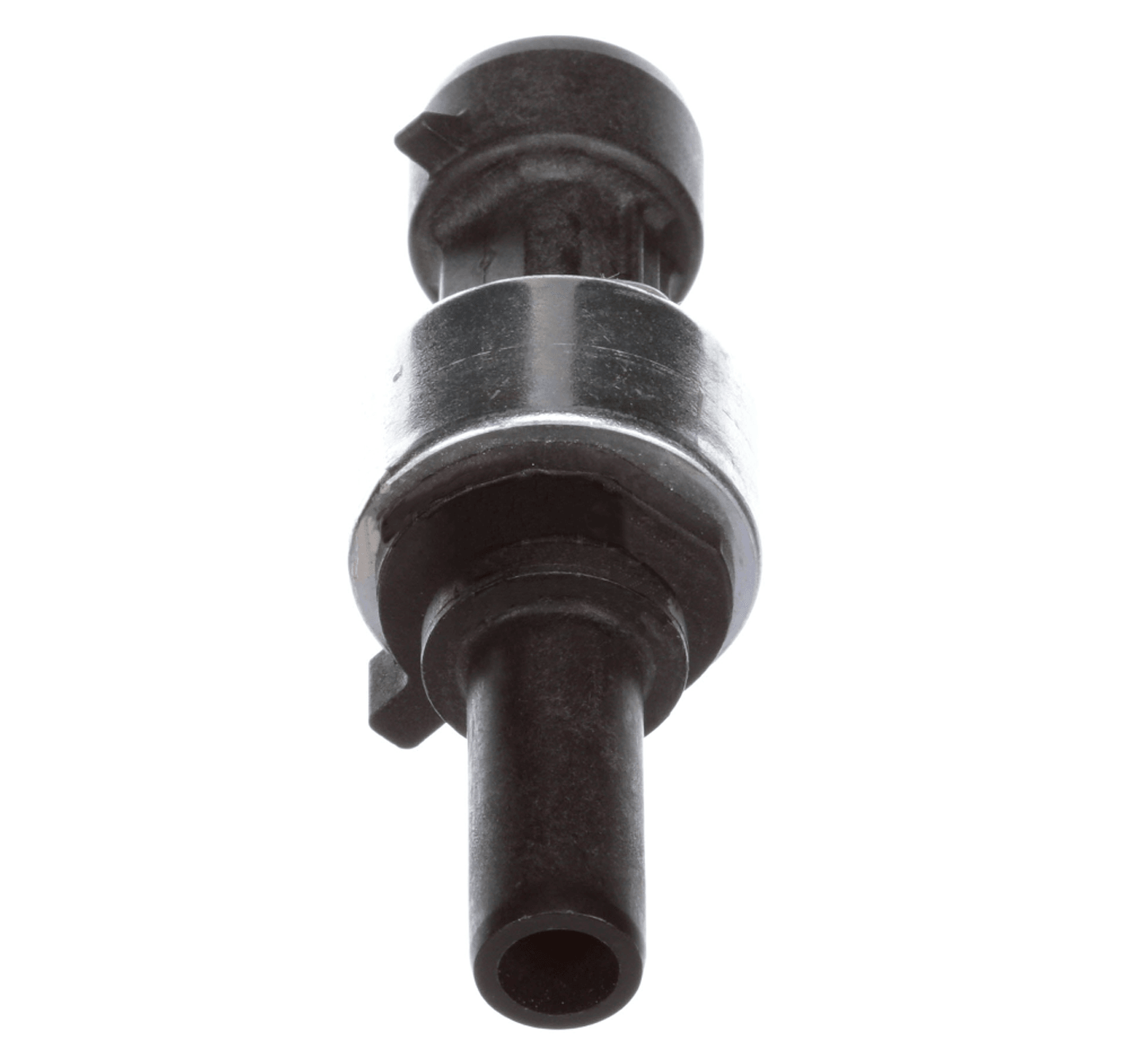

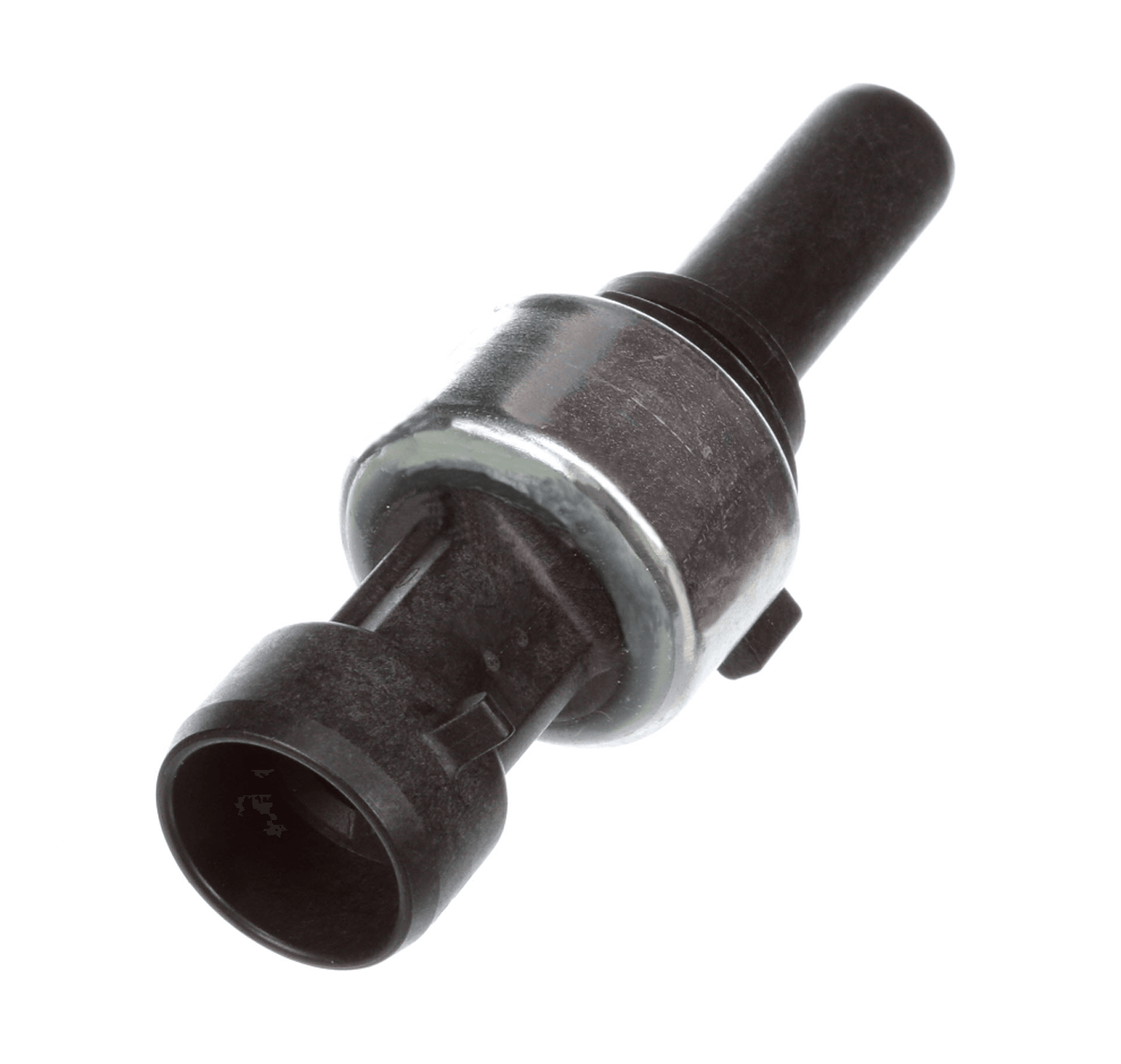

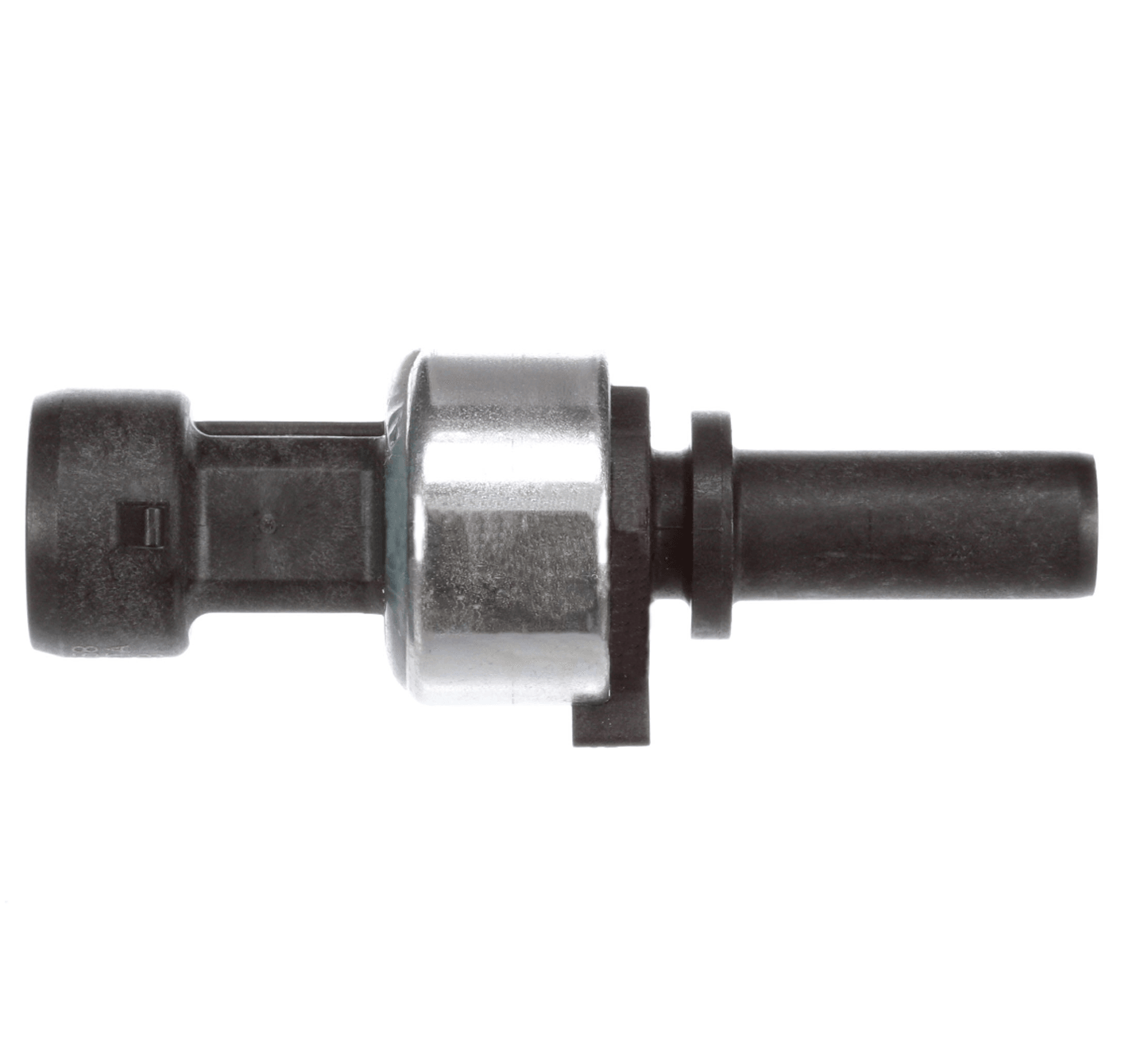

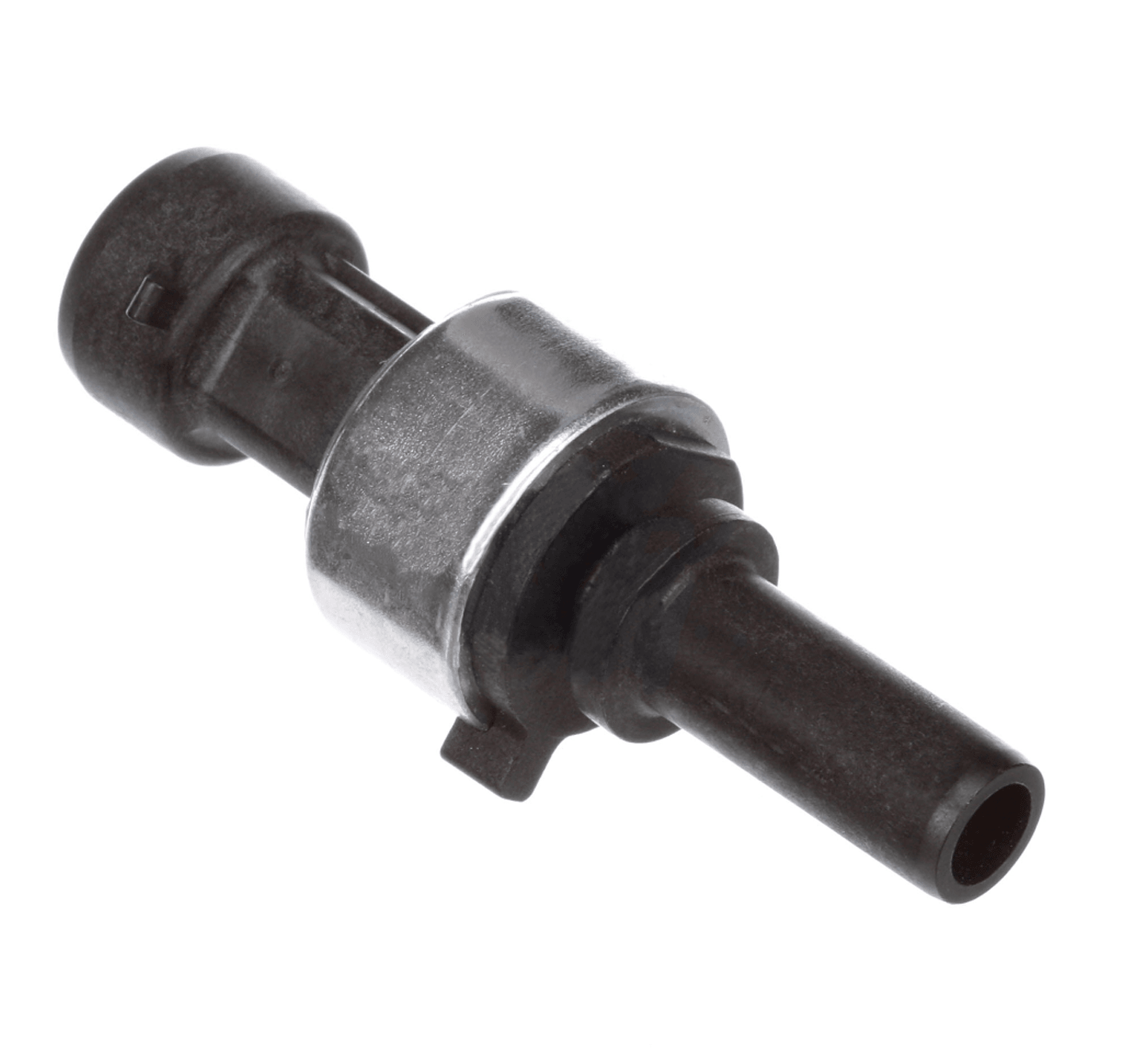

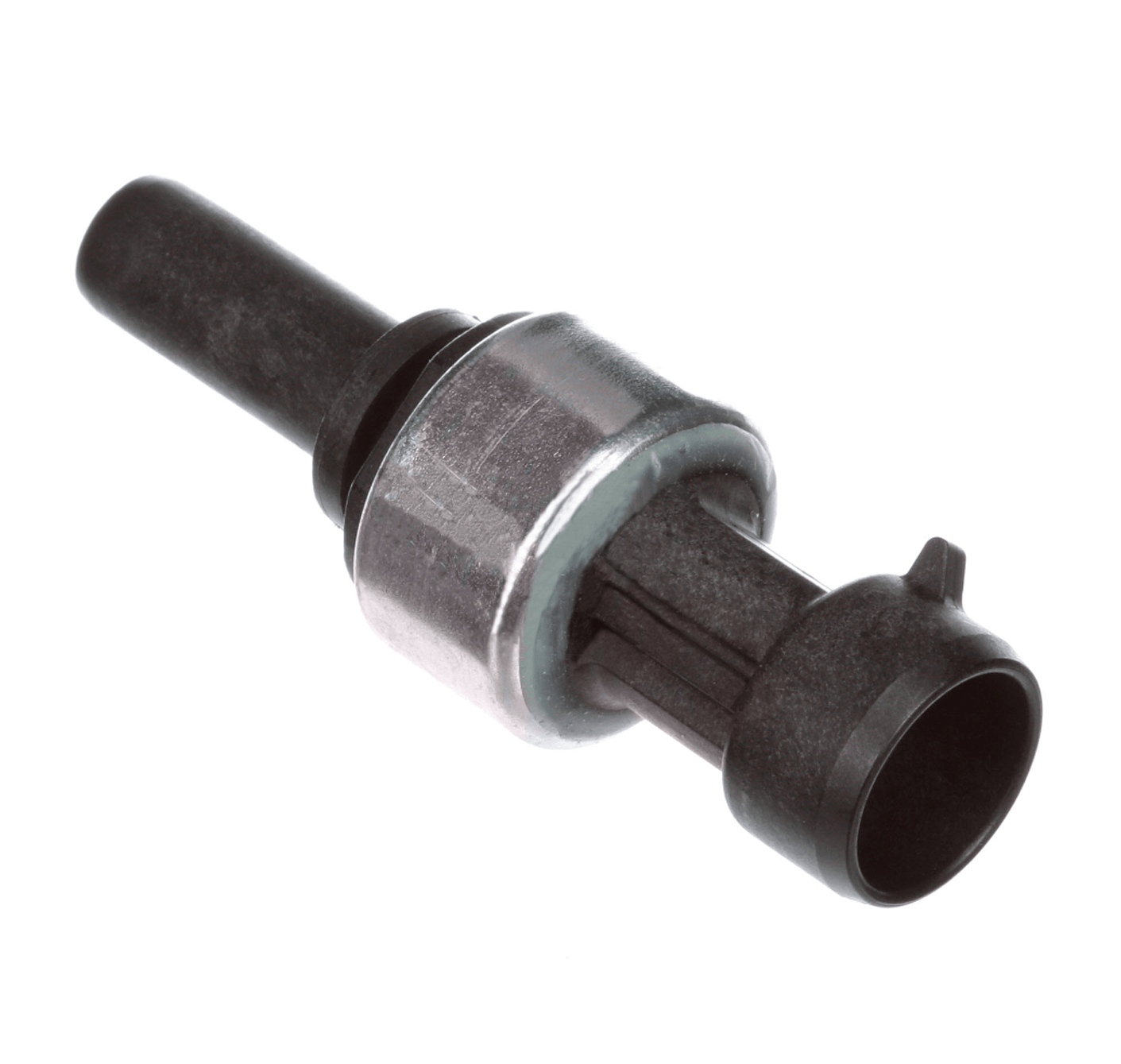

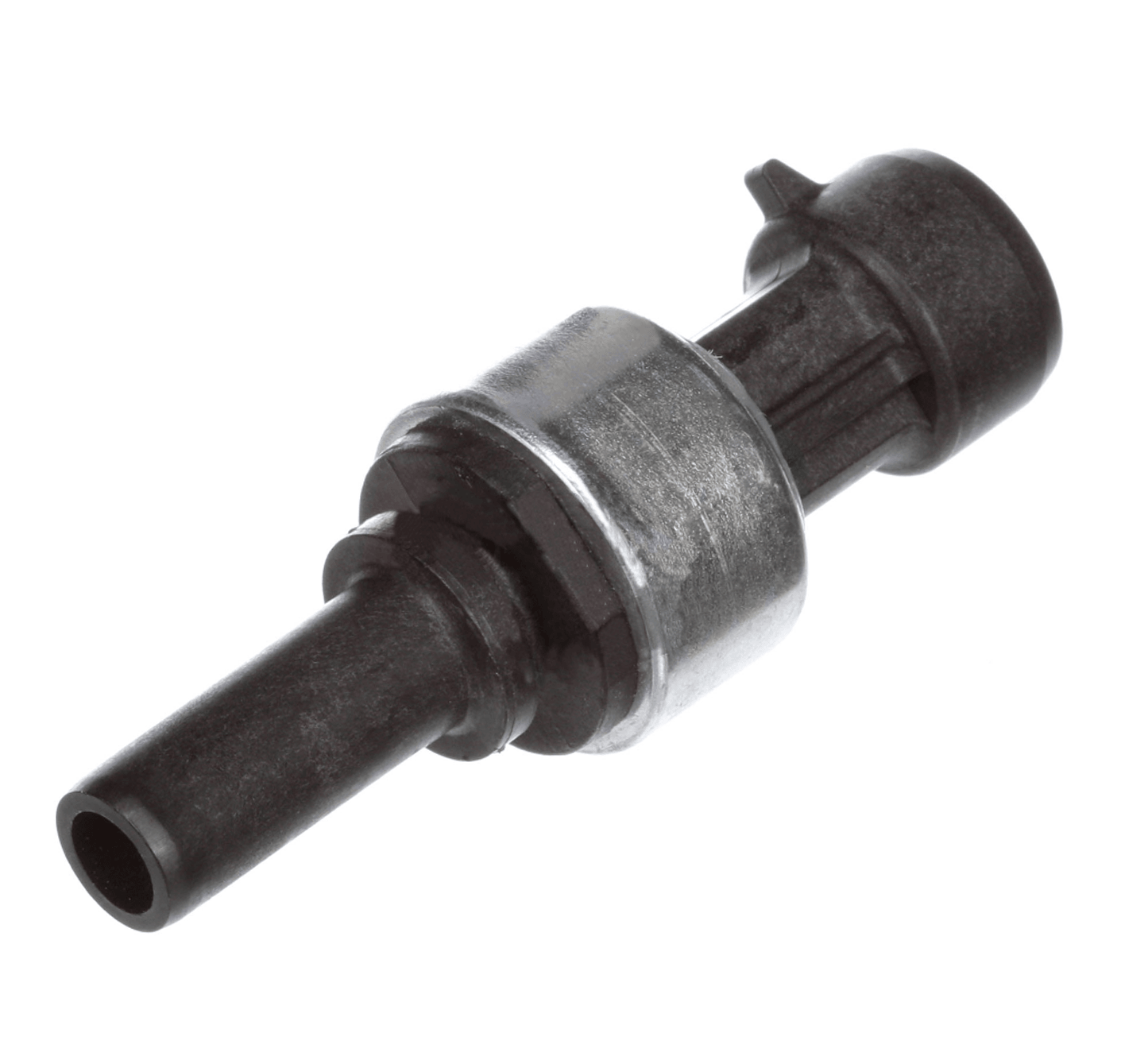

Description: PS-60 Low Air Pressure Sensor Transductor For International, Kenworth, Peterbilt, Mack, Volvo, Freightliner, Western Star, Sterling, Crane Carrier

Condition: New

Brand: Bendix

Part Number: 5005758

Other OEM Part Numbers That Will Work: 704572AT

Connector Type - Metri-Pack 150 Series 3-Way Sealed Connector (Male)
Pneumatic Connection - Ø 3/8 IN Stem
Operating Voltage Range - 4.75 VDC - 5.25 VDC
Current (Nominal) - 8.0 mA
Operating Pressure Range - 0-150 PSI
Accuracy - ± 3.0% of the Full Scale Output (5 VDC)
Maximum Operating Temperature - 257 °F (125 °C)
Minimum Operating Temperature - -40 °F (-40 °C)
Cautionary Note(s) - Mates with 3/8" Weatherhead QCAB / Parker Prestomatic Fittings
